What a crank-scraper is and other technical info... Some comments on our products...

AMC, BMW, Buick, Buick-Rover, Cadillac, Chevrolet, Chrysler/Mopar, Datsun-Nissan, Fiat-Lancia, Ford, GM, Honda/Acura, IHC, Jaguar, Mazda, Mercedes, MGA/MGB, Mitsubishi, Oldsmobile, Opel, Pontiac, Porsche, Renault, Suzuki-Geo, Toyota, Triumph, VW, Volvo





Some comments on our products from amongst thousands and thousands of users...



Congratulations to Jesse Prather, 2007 SCCA F Production National Champion!



Congratulations to Jay Marlowe, 2007 SCCA G Production National Champion!

Congratulations to Chuck Mathis, 2007 SCCA G Production 2nd place!

SCCA Image



Congratulations to Carl Fausett: Third Place in the 2007 Pikes Peak Hill Climb open division!

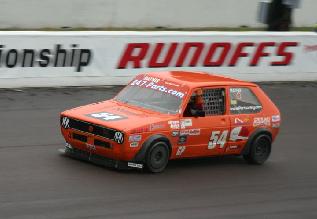

Congratulations to Chuck Mathis,

2006 SCCA G Production National Champion!

SCCA Image



Congratulations to Steve Cole on winning the 2006 CVAR B Sedan Championship in his Fiat 124

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Chuck Taylor, racer and owner of Factory 3 Performance writes:





~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

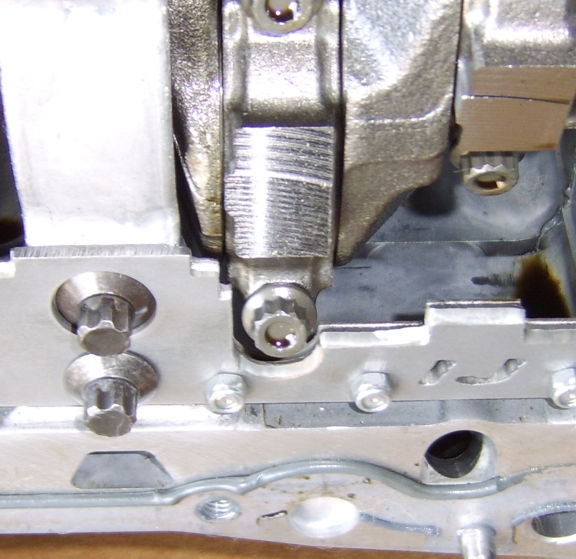

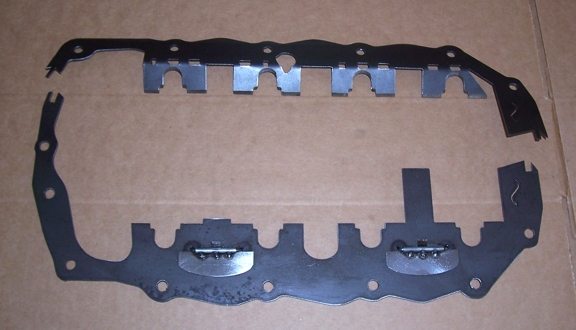

Daniel Scott, owner of a 1996 Dodge Stratus with 206,000 miles on it installed our dual scraper for the 2.4 designed to work with engines with the balance shafts left in place. [Note: the system mentioned later on this page that was dyno tested for the 2.4 is used when the balance shafts are removed.]  Daniel removed the pan and saw that an OEM gasket scraper from Dodge was already in place.  He removed this and installed our dual scraper which has far more coverage and dual acceleration trap doors:

He wrote and said, "the crank scraper was the best mod for the 2.4 engine. There is a major and noticeable difference in mid range and high rpm. A must for any stratus owner looking to make a lot of power for a nice price; easy installation and a great hand crafted piece."

Again, it is worth noting that this change alone showed a major power difference on an engine with 206,000 miles on it.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

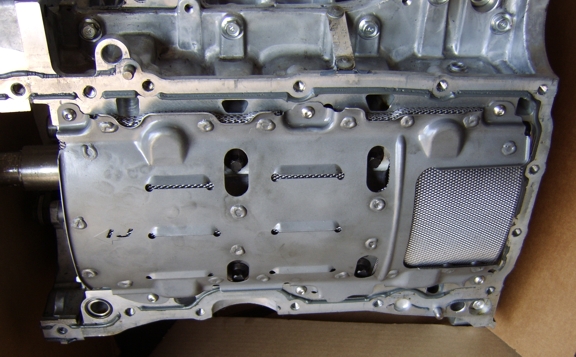

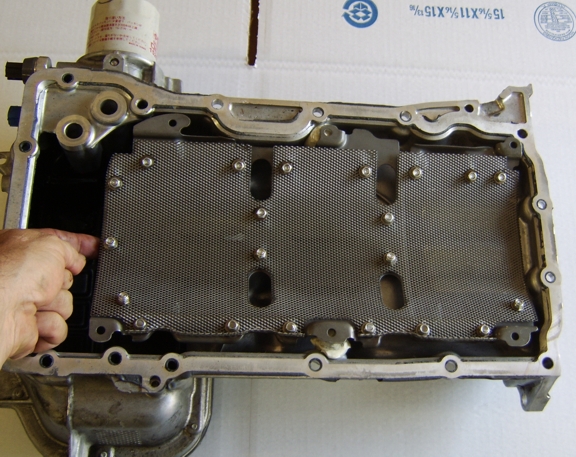

Ishihara-Johnson Setup for Dodge 2.4 Dyno Tested



September 12th, 2005

Ed Peters, retired Chrysler engineer, active racer and owner of Magnum Force Engineering, performed back to back dyno tests today on the Ishihara-Johnson standard steel combination scraper, dual-windage tray and baffle setup for the 2.4 Dodge engine (see pictures below).  Magnum Force Engineering has a state of the art environmentally controlled dyno room where, among other parameters, ambient air temperature of 71 degrees Fahrenheit was held to within +/- .5 degrees.  Experimental conditions in the dyno room and for the engine were normalized for both back to back pulls.

The tests were run on a normally aspirated 2.4 liter P.T. Cruiser engine with a modified engine management system allowing it to exceed the normal factory redline. The balance shafts in this engine were removed and, notably, it was equipped with the factory oil cooler for the SRT4 and P.T. Cruiser Turbo.  The engine was equipped with a 195 degree F thermostat.  Five quarts of fresh Mobil 1 10W-40 synthetic oil were used during each pull.

Prior to both pulls, the engine oil pan temperature (oil temperature in the reservoir) and coolant temperatures were allowed to stabilize.  At each rpm increment in the tables below the temperatures were allowed to again stabilize in order to give an accurate reflection of the steady state operating conditions in the engine at that speed.

At peak rpms, use of the windage tray setup accompanied a 24 degree Fahrenheit drop in oil temperature, an 11 degree drop in coolant temperature and a 7 hp and 13 ftlb boost in power.

Ed Peters remarked that "this setup is the most significant bolt-on change for oil and windage control that he has witnessed since 1986."

In 1986, while at Chrysler, Ed performed joint research with Mobil Oil on windage losses in the 2.2 Shelby Turbo engine.  He developed a performance oil pan that regained 9 hp at 6000 rpm when using Mobil 1 oil.   Earlier in his career he was involved with the Dodge Daytona / Plymouth Superbird that dominated NASCAR racing for a period of time.

It is important to note that a turbocharged version of the 2.4 engine would have higher windage losses and oil heating due to the increased level of normal blow-by in the crankcase. Therefore even more benefit would be found in the use of a proper windage control system.





Dodge 2.4 NA P.T. Cruiser Engine -- balance shafts removed

  Oil pan temperature in degrees F Engine coolant temperature in degrees F
3000 rpm 197 196
4000 rpm 203 198
5000 rpm 208 199
6000 rpm 216 204
7000 rpm 220 211
7500 rpm 231 212

Dodge 2.4 NA P.T. Cruiser Engine -- balance shafts removed and Ishihara-Johnson standard steel crank scraper and dual windage tray setup with baffles and trap doors installed.

  Oil pan temperature in degrees F Engine coolant temperature in degrees F HP TQ
3000 rpm 196 (-1) 196 (unchanged) same same
4000 rpm 199 (-4) 196 (-2) same +3 ftlb
5000 rpm 201 (-7) 197 (-2) +2 hp +7 ftlb
6000 rpm 202 (-14) 197 (-7) +3 hp +8 ftlb
7000 rpm 207 (-13) 197 (-10) +5 hp +10 ftlb
7500 rpm 207 (-24) 201 (-10) +7 hp +13 ftlb



Below: Steve Lockett runs the 2.4 windage tray setup in his 9.7 sec 160 mph Neon





---------------------------------------------------

"... I added a custom crank scraper fitted specifically to my crank/rod setup (I made the template and Kevin Johnson at crank-scrapers.com made one to my template) the DL1 data showed a 3-5 hp improvement at the wheels and 2-3 mph gain on the top end at Road Atlanta's back straight, with no other changes. And that was with WORSE air conditions (ambient temperature was higher, humidity was higher, and density was lower) when I went back to Road Atlanta after fitting the scraper. (March national vs. June national). This is on a full prep G-Production 1.5L Scirocco, making about 120 WHP at the time.

"I'm convinced.  If my competitors are dubious and not convinced, that's even better! I wish I had known about them when I raced ITC!"

Mark Coffin

[Our VW scrapers for the Scirocco are now improved dual patterns which work on both the up and downstroke of the engine...]



Mark Coffin schreibt: (aus dem Englischen)

".... Ich setze einen Kurbelwellenkratzer/Kurbelwellen- Ölhobel ein, der speziell auf mein Kurbelwellen/ Pleul Setup zugeschnitten ist (Ich fertigte eine Schablone und Kevin Johnson bei crank-scrapers.com fertigte den Kurbelwellenkratzer/Kurbelwellen- Ölhobel) die DL1 Daten zeigten eine Verbesserung um 3 bis 5 hp an den Rädern und 2 bis 3 mph mehr Endgewschwindigkeit am oberen Ende der Road Atlanta Gerade ohne andere Änderungen. Und das bei SCHLECHTEREN Bedingungen (höhere Umgebungstemperatur, die Luftfeuchtigkeit war höher und der Luftdruck geringer) als ich zur Road Atlanta zurückkehrte, nachdem ich den Kurbelwellenkratzer/Kurbelwellen- Ölhobel montiert hatte. (March national gegen June- National). Dieser befindet sich in einem voll Renntauglichen G- Production 1.5L Scirocco, der zu dieser Zeit etwa 120 WHp brachte.
"Ich bin überzeugt! Wenn meine Gegner zweifeln und nicht überzeugt sind ist`s besser für mich! I wünschte, ich hätte davon gewusst, als ich ITC rennen gefahren bin!"



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



John Shaul runs an Ishihara-Johnson crank scraper in his 1963 Max Wedge Plymouth

He found it significantly helped the car's ET...

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Mike Miller (owner #66 above) writes on the NicoClub.com forums:

... I have two engines that currently have a crank scraper/windage tray.
1. Nissan L-16 and 2. KA24e truck block.
The engine I am running now is the L-16, and it is series champion in 2005 for this size of engine.
To make a long story short, scraper(s) work ! Note: I only have a scraper on this engine.
Why ? The engine ran previously without one and then installed.
It's application is asphalt and dirt racing midget. We have a registering tach, with memory push button. Obviously, there are many, many conditions that would affect the performance of an engine, but, on a consistence base, we GAINED approximately two ways, rpm and quicker.
Rpm- we gained approximately 100 to 200 rpm, in turn this got us right at the rpm needed for the cam to do its work (right at the "sweet" part of the cam) thus, the torque and horsepower is getting out of the engine and to the rear wheels, in turn, quicker (hp) and torque to get out of the corners.
Plus, as others spoke about, keeping the oil where it should be, in the sump where it should be for when it is not being used. ...



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~





Monday, June 12th, 2006

Hi Kevin


I recently bought from you a scraper for my BMW 2002 Historic Race Car (M10 engine), fitted it last week, and competed with the car just last weekend.

How does an extra 600 rpm at the end of the main straights sound???

My lap times were consistently better by one second per lap, and over 3 races, of 5, 6, and 10 laps each, I posted 8 laps betted than my previous best.

Engine and oil temperatures were lower than before (same ambient conditions).

The engine feels like it has been fitted with a lightweight flywheel etc etc...

All I can say, is THANKYOU !!!!!!!!!!!!! The best $49.95 I have ever spent !

You may well get some orders from fellow 2002 racers here in Australia.

Cheers

Bill Cutler

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~























Kevin,


You made a Teflon® crank scraper for my Datsun Spl-311.  What a difference.

Sincerely

Russell Roach #34

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



I installed my 944 Turbo Windage tray/Teflon crank scraper and I’m happy to report my oil pressure is consistently 1 bar higher than previously.  Normally after working the engine at sustained high rpms and coming back down to idle I would see the gauge fluctuating above and below the 2 bar line.  Now under the same driving conditions using the exact same oil, I never see below 3 bar at idle.  I just thought I’d share my experience with your product.



Thank you,

Chris Jurkiewicz
