We can  do custom stroker or knife-edge crank designs.  We can provide templates for initial fitting and adjustment. Templates cost $100 and are a separate charge from the scraper pattern chosen.

We have included some representative pictures of the scrapers we make.  If you would like to see a picture of a particular scraper please ask -- we would be more than happy to send one through.

When available (please enquire) our zero-clearance Teflon® scrapers run an additional $130.00 to the cost of the standard steel scraper unless noted.

Remember, your vehicle may have an engine made by a different manufacturer so check both product lines.  If you are still unsure, please contact us.

crankscraper, crank-scraper, crank-scrapper, crank, crankshaft, rod-bearing, main-bearing, connecting-rod, counterweight, piston, windage, windage-tray, windage-cloud, oil pan, oil-pan, oil-aeration, oil-foaming, oil-cloud, racing, drag racing, road racing, drag-race, road-race, road-course, drift, drifting, time-trial, performance, power, horsepower, HP, torque, TQ, friction, vacuum, economy, engine, motor



Mitsubishi

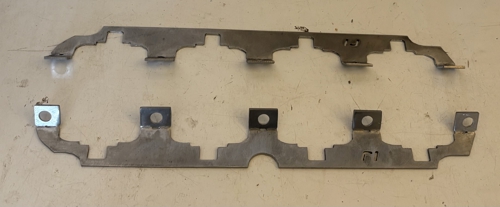

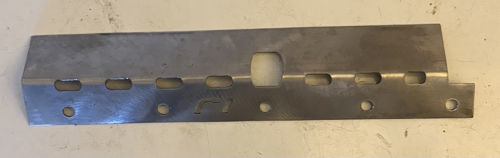

ATTENTION: If you have a Hyundai variant be SURE to mention this.

Copyright 2002-2024 © All rights are reserved on our product designs.

G63B, 4G63B, G64B, 4G64 -- turbo variants, different generations, strokers, many variations please enquire.

Triple scrapers $114.95

Some versions are available with Teflon bladed upstroke scrapers: $234.95

Some customers have asked for the older dual scraper design that attaches between the pan and block only: $94.95

Teflon bladed version of dual scraper: $224.95

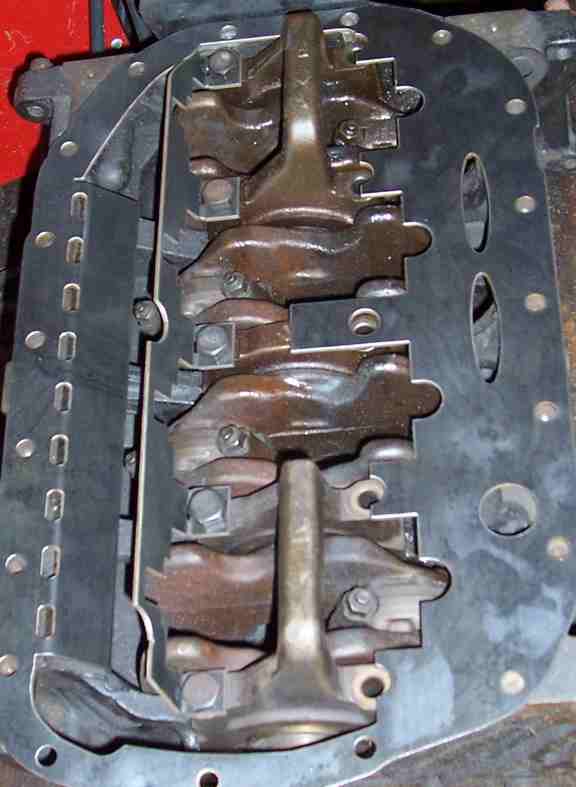

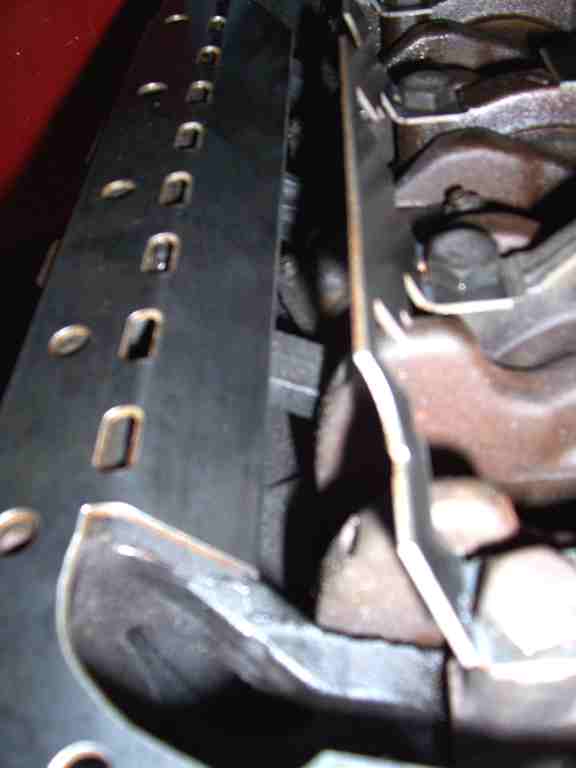

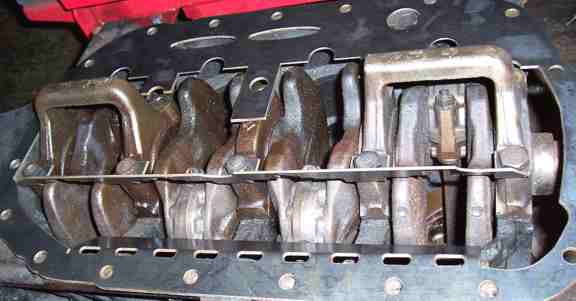

The 1st gen and earlier 4G63 and 4G64 series now are triple scraper designs.  Here are some pics of the 4G63T 1st gen which also has ARP stud relief holes:



Important info:

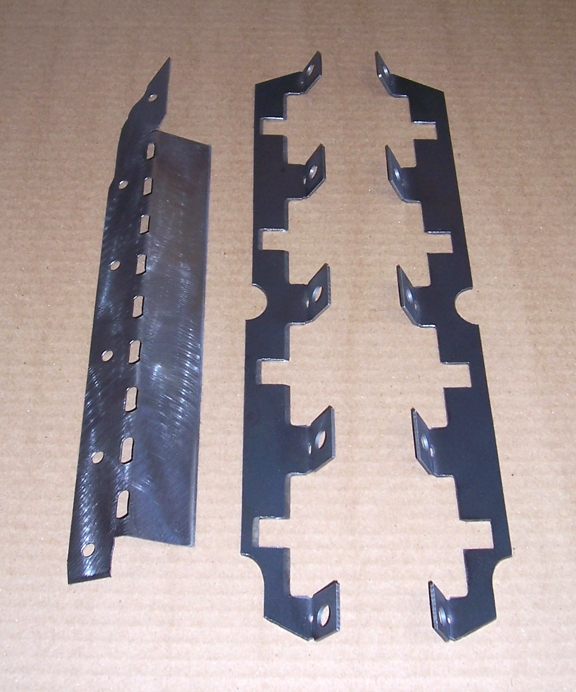

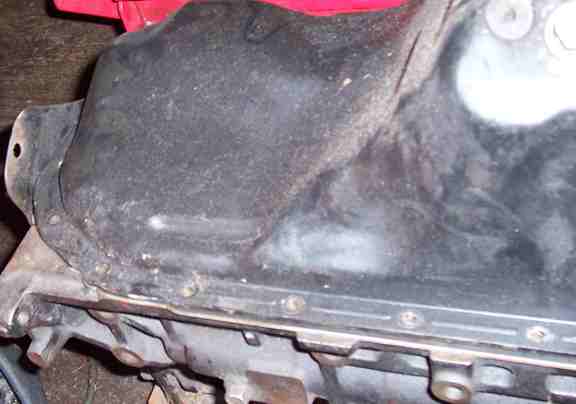

The 7-bolt 4G63 and 4G64 series now are triple scraper designs.  The third scraper is a thin downstroke design and installs between the pan and block and is held in place with RTV or other suitable sealing compound.

~~~~~~~~~~~~~~~~~~~~~~~~~~~

The Evo IX 4G69 dual scraper sets are $169.95

One scraper mounts to the girdle using the main fasteners and the other is a thin downstroke design and mounts between the pan and block and is held in place with RTV or other suitable sealing compound.
