Datsun/Nissan



Copyright 2002-2024 © All rights are reserved on our product designs.

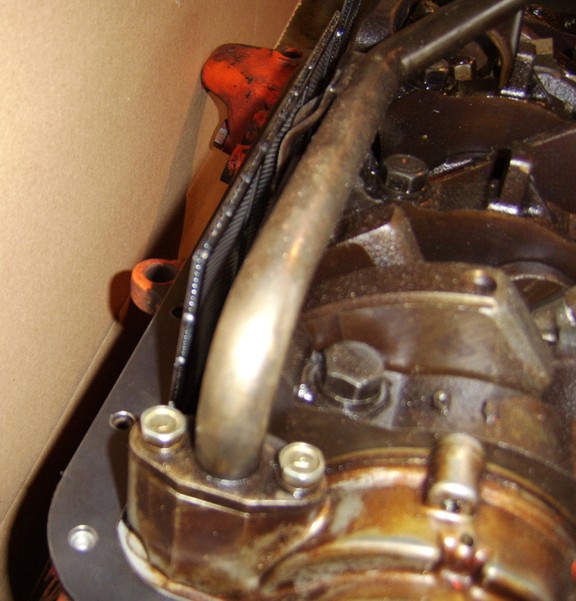

VG30 series dual scrapers. Please specify whether you have a VG30E (ET, etc.) or VG30DE (DET, DETT, etc.) variant or a VG33E. The patterns are different in the front cover area (oil pump) as well as on the side where the pickup tube (DE) passes. $109.95

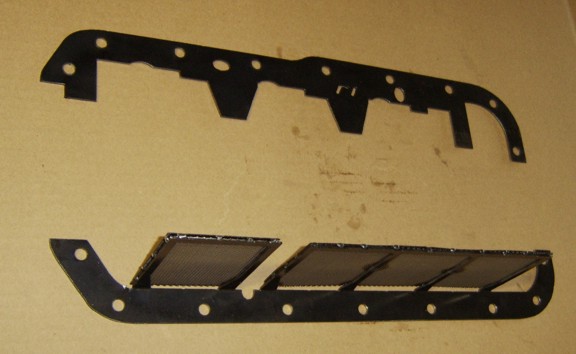

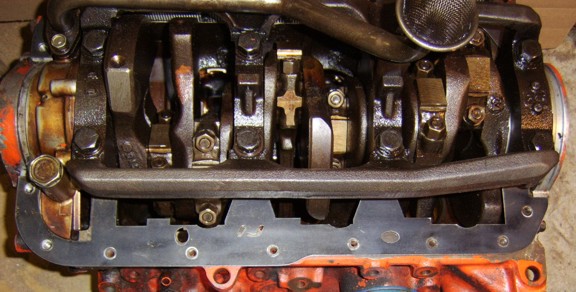

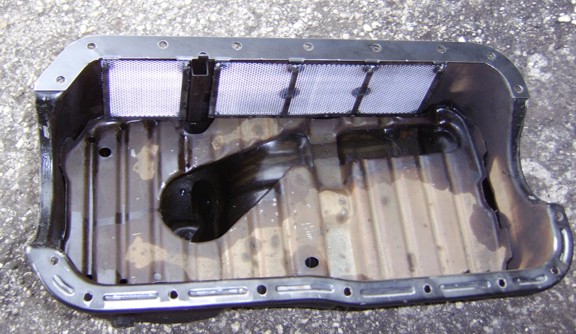

Below: VG30E dual scraper

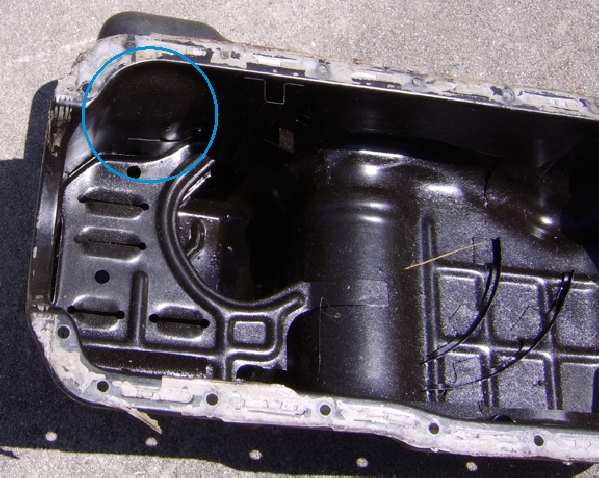

Important! The VG30DETT pan (for example) has an inward bulge just over the kickout.  This is to allow technicians access to the torque converter bolts as with the SR20, KA24DE, QR25DE, RB26DETT etc.

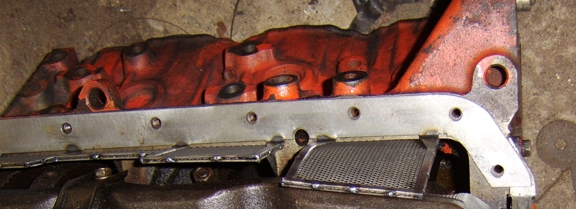

This bulge creates a disturbance in the windage flow and should ideally be bumped out if you are not running an automatic transmission.  The VG30DETT downstroke scraper is supplied with a screening panel for that area that will fit only if you bump out the bulge.  Otherwise you will need to simply trim off the last panel.

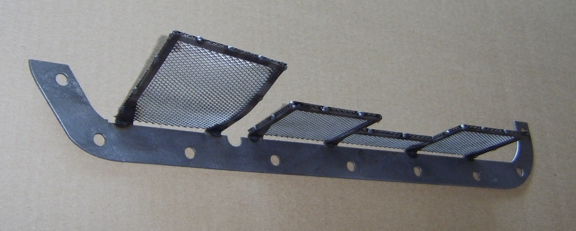

We can supply curved variations of the final screen panel that will require less or very little massaging of the oil pan interior:

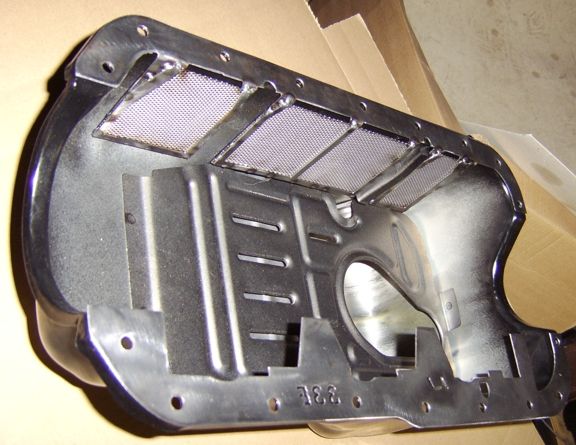

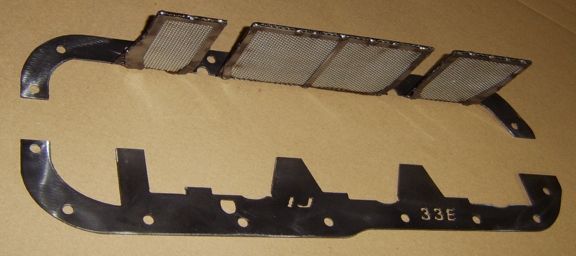

This is one of our latest designs, the VG33E:
